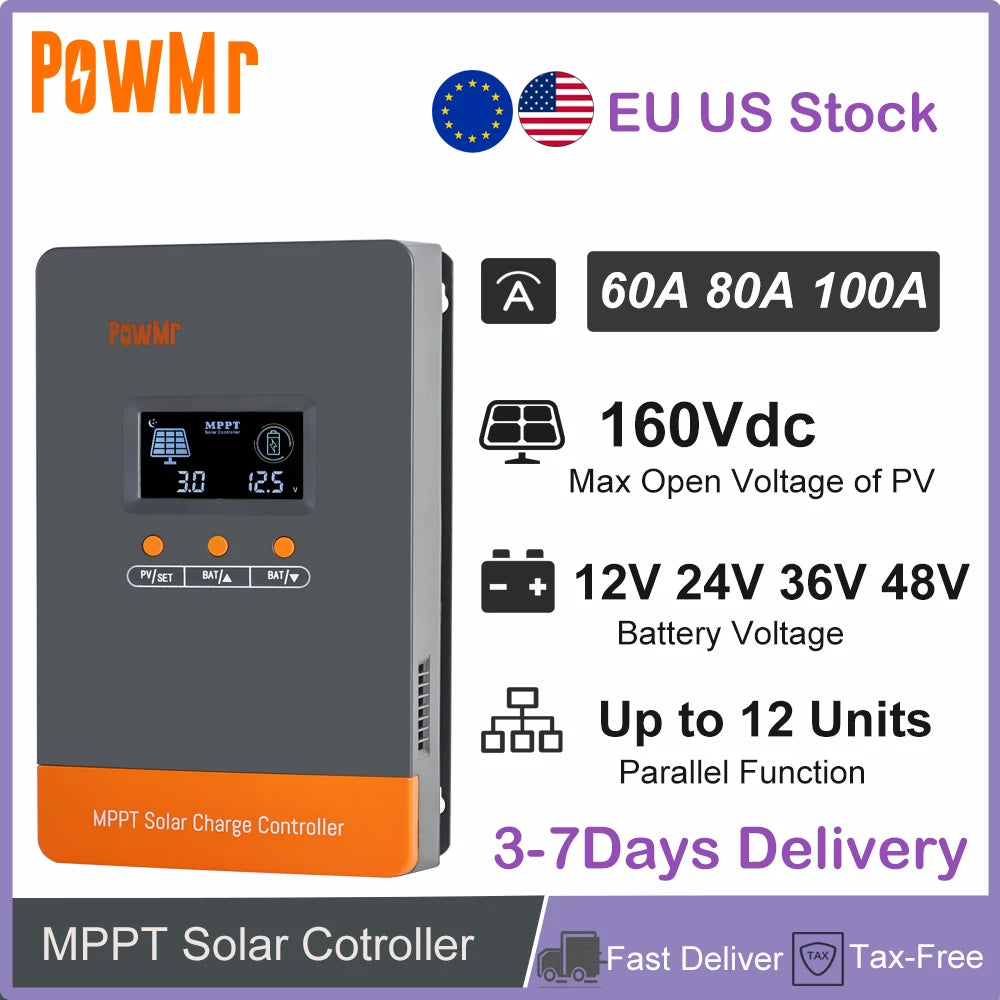

PowMr MPPT Solar Charge Controller 60A 80A 100A For 12V-48V
PowMr MPPT Solar Charge Controller 60A 80A 100A For 12V-48V
Regular price
$161.99 USD
Regular price
$0.00 USD
Sale price
$161.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
PowMr MPPT Solar Charge Controller delivers precise, 3-stage MPPT charging for 12V–48V systems.
- Choose from 60A, 80A, or 100A variants to fit your solar array and battery bank, with a maximum PV open-circuit voltage of 160V.
- Compatible with 12V/24V/36V/48V nominal systems and supports parallel operation for up to 12 units to scale energy storage as your needs grow.

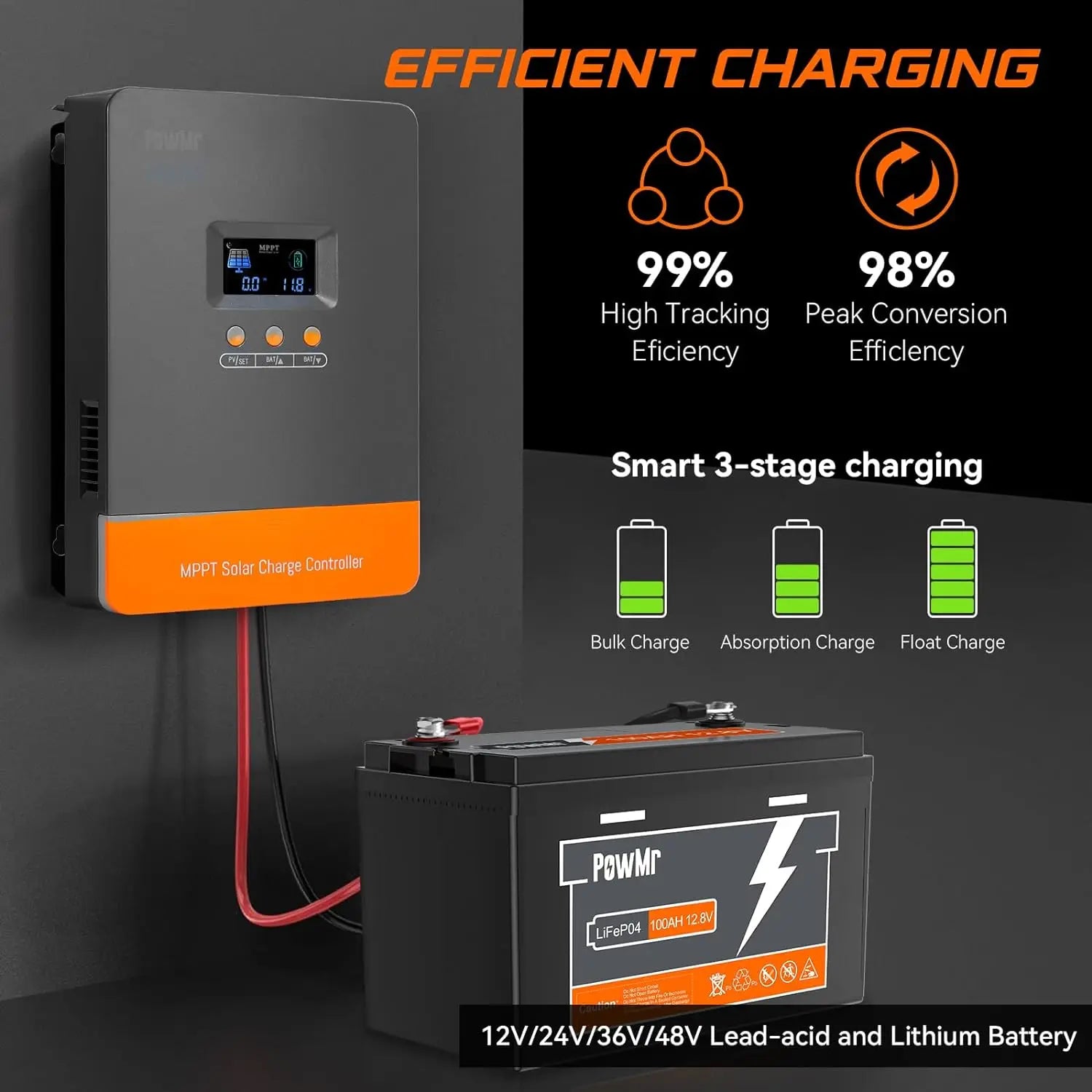

- Adaptive Boost Charging combined with a 3-stage MPPT algorithm optimizes every charging cycle; integrated presets support flooded, gel, and lithium chemistries along with lithium activation.
- External temperature probe support ensures precise temperature compensation and safer charging for Li-ion or LiFePO4 packs in home or RV solar setups.
Models |
60A |
80A |
100A |
Solar Input Specification | |||
|
Max. Solar Array Open-Circuit
Voltage
|
160Vdc |
||
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W 20-80Vdc;
1440W 37-105Vdc;
2100W 50-160Vdc;
2800W 72-160Vdc.
|
960W
1920W
2880W
3840W
|
1200W
2400W
3600W
4800W
|
Charge Mode | |||
Charging Technology |
MPPT |
||
Charging Algorithm |
3 Stages |
||
Nominal System Voltage |
12V/24V/36V/48V |
||
Battery Voltage Range |
9~60V |
9~60V |
|
Rated Charging Current |
60A |
80A |
100A |
Conversion Efficiency |
≤98% |
||
MPPT Efficiency |
>99% |
||
Self-Consumption |
0.7W-1.2W |
44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V |
|
Environment Specification | |||
Operating Temperature Range |
-35℃~+45℃ |
||
Humidity Range |
≤95%,Non-condensing |
||
Altitude |
<3000m |
||
Protection Level |
IP32 |
||
Parallel Function |
Up to 12 Units in Parallel |
||
